Elektron® 91

Elektron® MAP+91 is a gas-atomized, magnesium-alloy powder, specifically designed and optimized for additive manufacturing applications.

Elektron® MAP+91 is based on a standard magnesium casting alloy, Elektron® AZ91 (ASTM: AZ91E), a lightweight alloy designed for aerospace and structural applications.

Elektron® MAP+91 powders are available in particle size distributions of 20 to 63 µm and 44 to 160 µm. Custom particle size distributions are also available.

Additive Manufacturing

  • Selective Laser Sintering
  • Direct Metal Laser Sintering
  • Electron beam melting
  • Direct metal deposition
  • Laser engineered net shapes
  • Cold spray deposition

Powder Metallurgy

  • Powder Forging
  • Powder Extrusion
  • Hot Isostatic Pressing (HIP)
  • Cold Isostatic Pressing (CIP)
  • Equal Channel Angular Extrusion (ECAE)

ELEKTRON® MAP+91 PARTICLE SIZE

Microns Mesh Apparent Density Tap Density Flow Rate Laser Diffraction Size
D10 D50 D90
[g/cm3] [g/cm3] [s/50g] [µm] [µm] [µm]

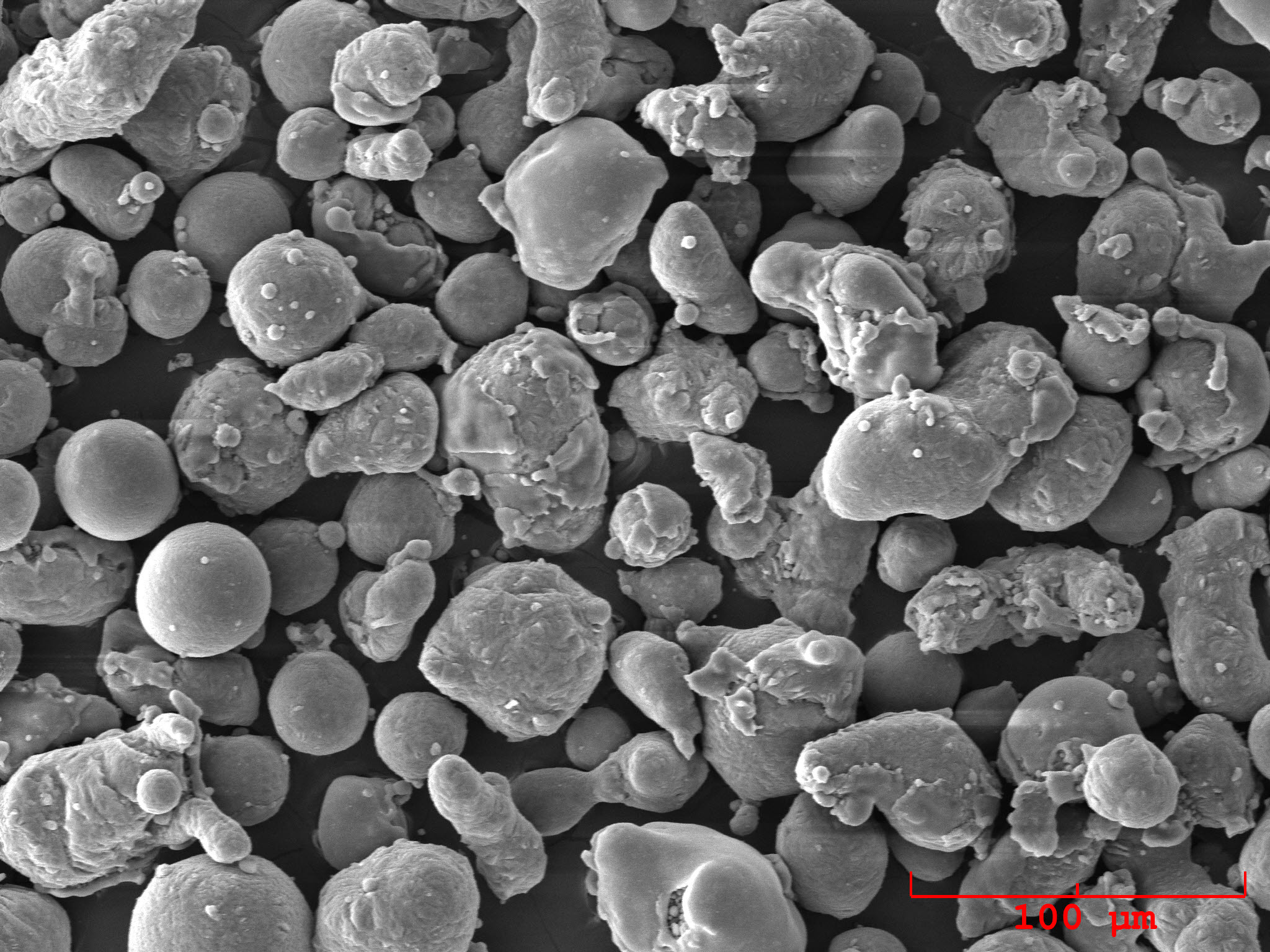

Additive Manufacturing 20 – 63 μm 230 – 635 mesh 0.95 1.1 160 27 40 59

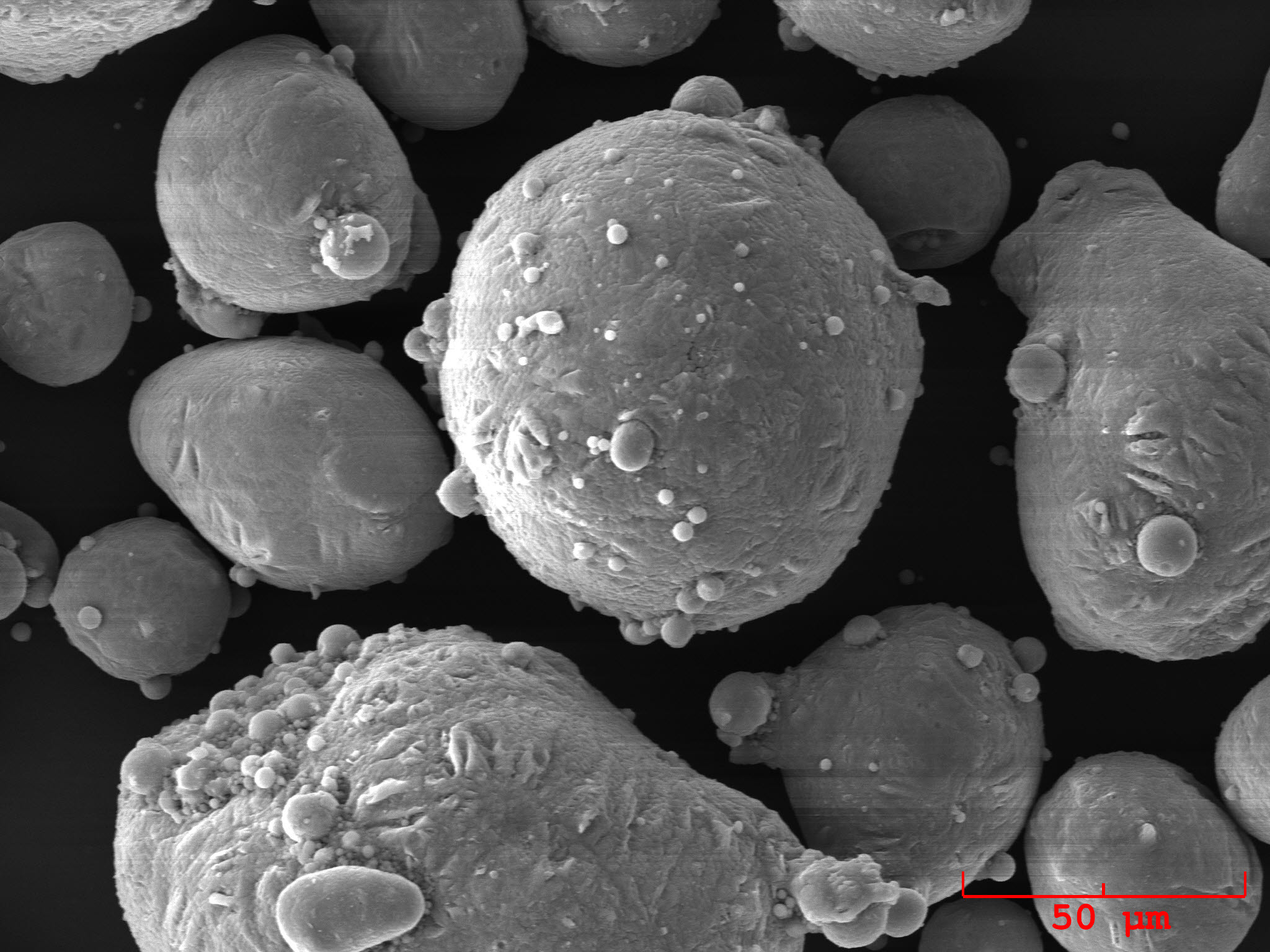

44 – 160 μm 90 – 325 mesh 0.97 1.1 73 55 94 153

ELEKTRON® AZ91 CHEMISTRY (AZ91E)

Element Symbol Specification [wt. %] Typical [wt. %]
Aluminum Al 8.5 – 9.5 9.0
Zinc Zn 0.45 – 0.9 0.5
Manganese Mn 0.17 – 0.3 0.2
Magnesium Mg Balance Balance

Product sheet available below

Download Product Sheet

Custom Alloy Development

Luxfer Magtech has in-house technical expertise to create custom alloys for unique applications.
We also have state-of-the-art manufacturing facilities suitable for toll processing customer-supplied materials.
